Performance characteristics of PP filter

2021-06-03

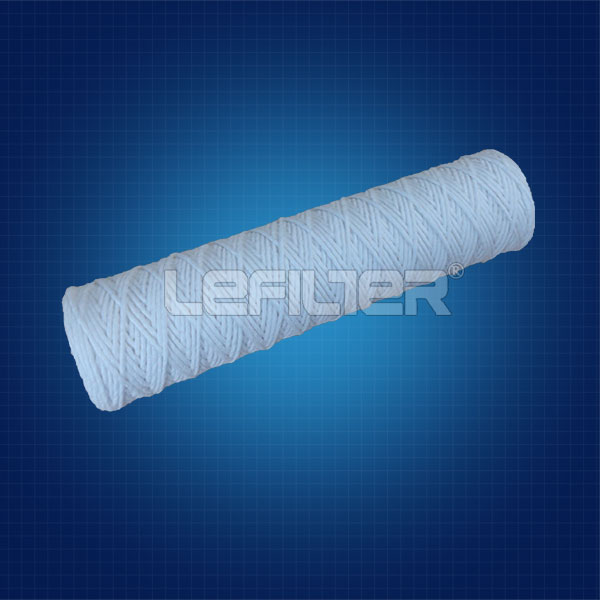

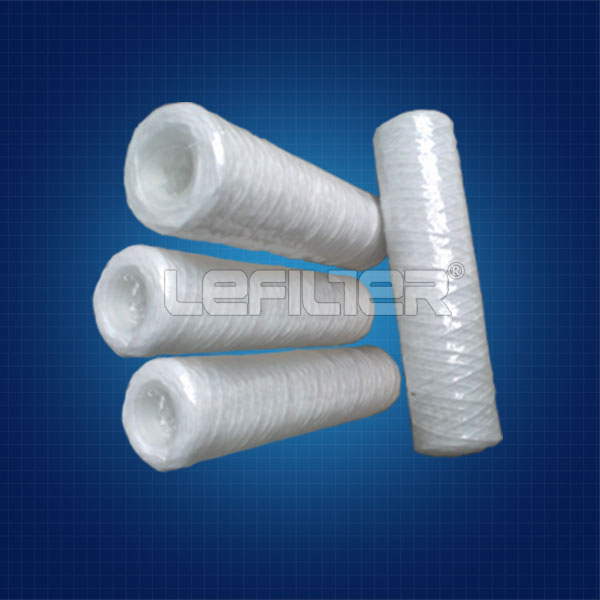

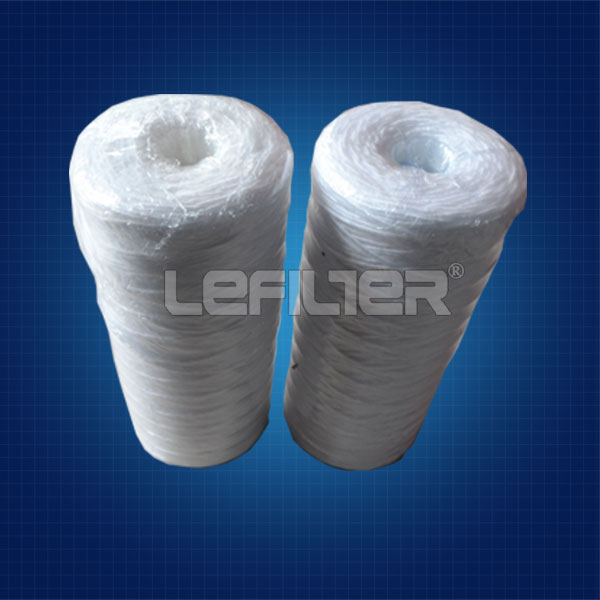

PP cotton thread wound filter product introduction:
The PP wire-wound filter element is formed by entwining polypropylene ultra-fine fiber threads. It is not suitable for any chemical adhesives. The fibers are randomly self-bonded in space to form a three-dimensional microporous structure, which integrates surface, deep, and coarse filtration. Due to fiber and density In the diameter direction of the filter element, it forms a deep filtration structure with high filtration accuracy and dirt holding capacity, small pressure difference, gradual pore size outside and dense inside, and strong dirt holding capacity. It can effectively remove suspended solids, particles, rust and other impurities in the fluid. High efficiency and long life.

Performance characteristics of PP cotton thread wound filter element:
1: Surface wire winding, scattered water flow direction
2: Reduce water flow resistance
3: Progressive density structure, increase the dirt holding capacity of the filter element
4: The surface fiber structure is strengthened, and it is not easy to produce hair removal.
5: Made of PP superfine fiber, high filtration accuracy
6: 100% pure PP, high corrosion resistance

Technical parameters of PP cotton thread wound filter element:
Filtration accuracy: 1, 3, 5, 10, 20
Applicable PH value: 1-13
Pressure difference: positive 0.4Mpa.
Working temperature: <70°C under 0.25Mpa.
Sterilization: resistance to 126°C, 30 minutes online steam sterilization.
Endotoxin: The water extract of the filter column is tested by lAL, and the endotoxin content is less than 0.5EU/ml

Application field of PP cotton thread wound filter element:
1: Used for civil drinking water filtration RO reverse osmosis filtration
2: Used for the filtration of acid and alkali liquids in the industrial chemical process
3: Treatment of industrial water and electroplating solution
4: Treatment of developing liquid and ink
5: Pre-filtration treatment of sterile water and ultrapure water
6: Filtration of chemical raw materials and organic solvents
