Application of cartridge water filter in lithium battery ne

2021-11-22

Project Overview
[Project name] Project with an annual output of 10,000 tons of cobalt tetroxide
[Project location] Hefei, Anhui Province
[Industry to which the project belongs] Lithium battery new energy industry
[Nature of project construction] Expansion project
[Main products]Cobalt tetroxide
[Main equipment] 20 security filters

Live situation
The filter medium is mainly washing water, mother liquor, pure water, ammonium bicarbonate, etc. The medium is pumped into the equipment. The filtration accuracy needs to reach 0.5μm and 1μm, and the processing capacity is 10-30m³/h. Separate, and can run continuously and stably.
According to customer needs, select the security filter for it.
How the equipment works
Under the action of pressure, the security filter allows the original liquid to pass through the filter material, the filter residue is left on the filter material, and the filtrate flows out through the filter material, which can effectively remove impurities, sediments and suspended solids in the water, so as to achieve the purpose of filtration.
The parameter configuration is as follows:

Equipment performance advantages:
1.High filtration accuracy, uniform filter element pore size, high strength, high temperature resistance, and not easy to deform
2.Small size, large filtration area, can withstand higher filtration pressure, and can effectively remove suspended solids, rust, etc. in the liquid
3.The filter element material has high cleanliness, no pollution to the filter medium, and can be replaced.

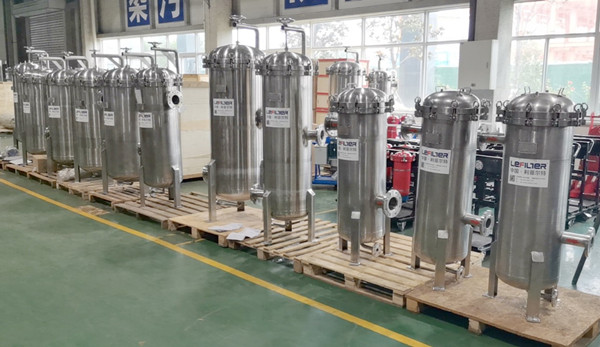

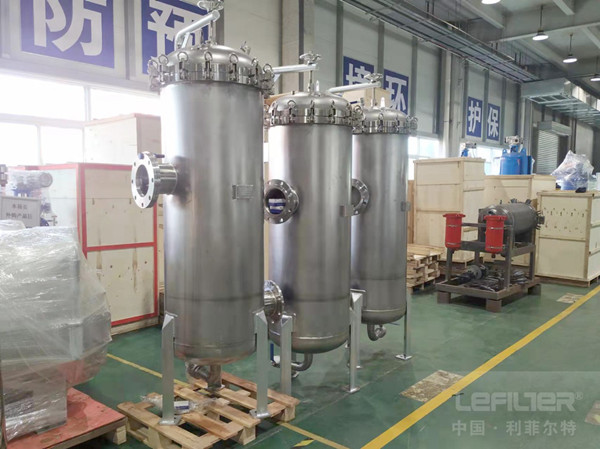

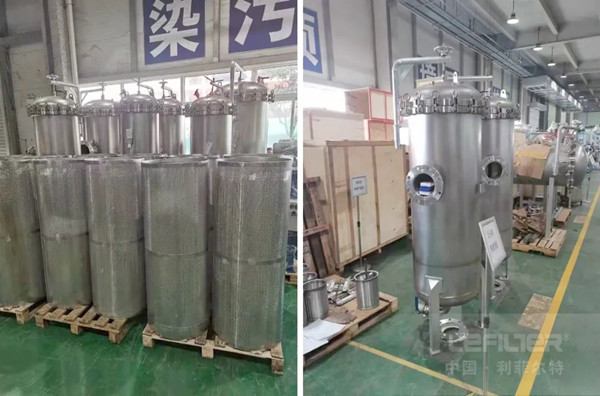

Equipment production site:

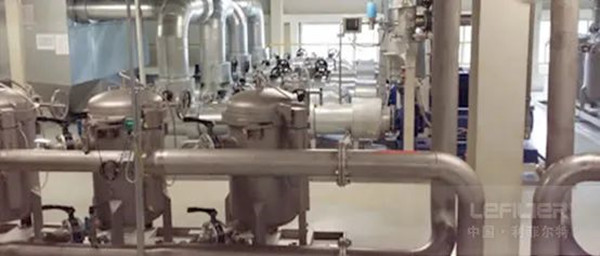

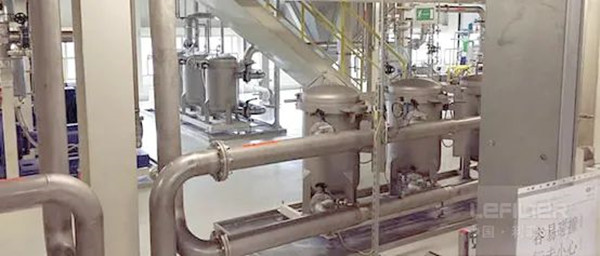

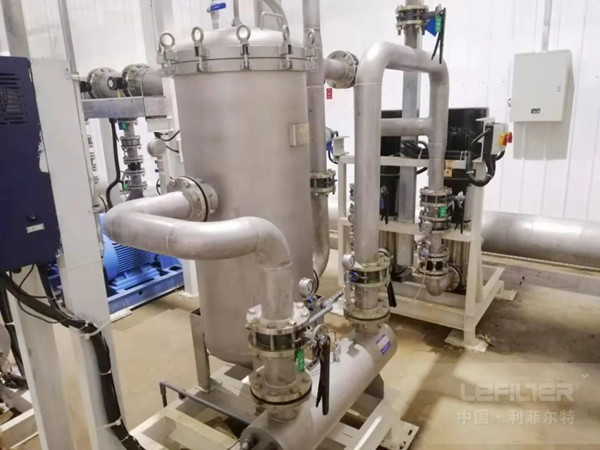

Equipment installation site:
