Application of softened water equipment in printing and dyeing textile industry
The printing and dyeing textile industry has certain requirements for water. In the north or some areas, hard water will affect product quality. The hardness of water is mainly formed by calcium and magnesium. In order to solve this problem, it is necessary to use softened water equipment to treat it. .
The equipment uses cation exchange resin to replace calcium (Ca2+) and magnesium (Mg2+) ions in the water. When the resin absorbs a certain amount of calcium and magnesium ions, it must be regenerated. The regeneration process is to rinse with salt water in the salt box. In the resin layer, the calcium and magnesium ions on the resin are replaced again and discharged out of the tank with the regenerated waste liquid. At this time, the resin resumes its softening and exchange function. In this process, by removing the calcium and magnesium ions in the water, the water hardness is reduced, and the product produced is guaranteed to be bright in color and soft in texture.

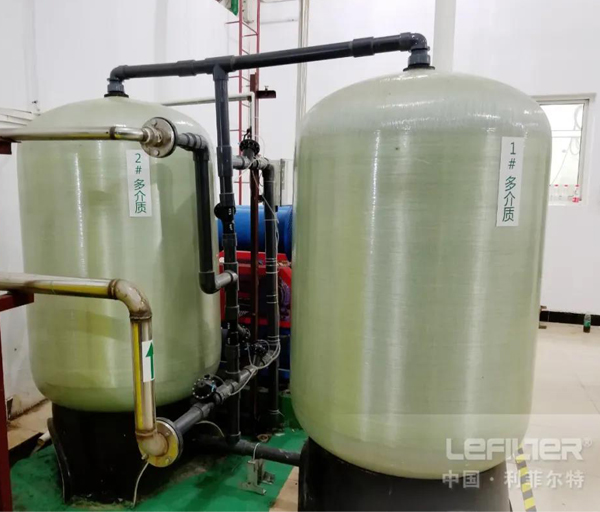

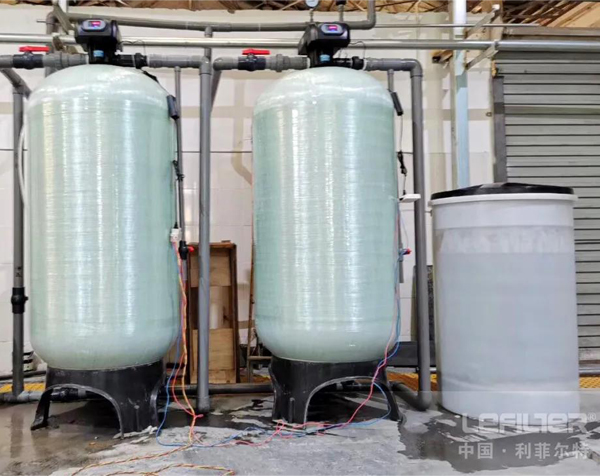

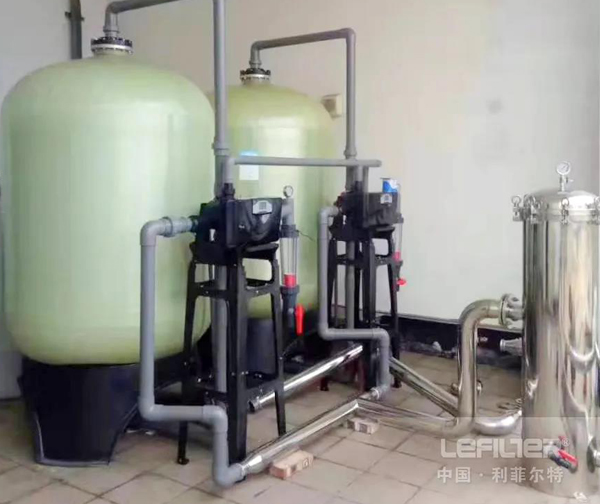

Softened water equipment structure
Resin: Strong acid cation exchange resin is selected, which has low damage rate, uniform particle size, and improves ion exchange rate;
Control valve: The valve body has high strength, light weight and corrosion resistance;
Anti-corrosion tank body: the tank body is made of glass fiber reinforced plastic (carbon steel or stainless steel tank body can be selected), the tank body is anti-corrosive, pressure resistant, and has a long service life;
Uniform water distribution system: Adopt jet water distribution system.
Equipment performance characteristics
Efficiency: The overall design of the water softening device is reasonable, so that the effective working exchange capacity of the resin can be fully utilized
Save labor and electricity: adopt the principle of siphon regeneration; high degree of automation, no need to set up special personnel on duty
Wide applicability: can be used in industrial boilers, heat exchangers, air conditioners, laundry, bathing equipment, food, pharmaceuticals, electronics and other industries
Small footprint: only need to provide the floor space of the resin tank and the salt tank, saving the space occupied by the pipeline
Easy to adjust: users can adjust the regeneration cycle and regeneration time according to actual needs
Low cost: Due to automation, the water softening equipment can adapt to changes in water volume, accurately measure the amount of water produced and the amount of regenerant, avoid waste, and save a lot of labor costs at the same time

Technical parameter:
