Analysis of common problems of bag filter

2021-07-10

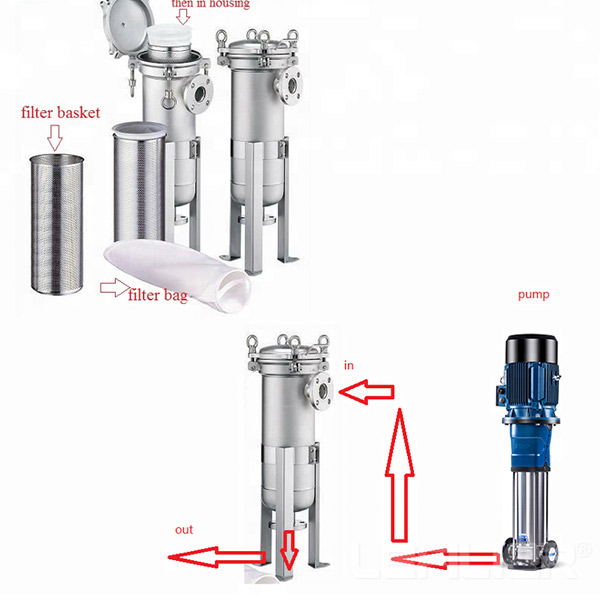

Bag filter is a pressure filter device, which is mainly composed of filter cartridge, filter cartridge cover, quick opening mechanism, stainless steel filter bag reinforced mesh and other main components. In the bag filter, the filter bag is supported by the metal mesh basket. The liquid flows in from the inlet and flows out from the outlet after being filtered by the filter bag. The impurities are trapped in the filter bag and can be used continuously after replacement. This machine is very convenient to replace the filter bag, and the filter basically has no material consumption.
However, in the process of using the filter, some problems will inevitably occur. We have selected a few more prominent problems, and let us explain and analyze them below.

The first question is how to know the status of impurities in the filtered material?
We want to know the size of the impurities, we should do this, buy filter bags with different sizes of filter holes, test them to see which filter bags have good filtration quality, and see what the actual filtration effect is. Or, you can also consult the filter manufacturer. The manufacturer has rich experience and a professional technical team. You can invite the filter manufacturer to conduct a field inspection, and then they will give you a satisfactory answer.

The second question is that the filtrate filtered by the bag filter is turbid. What is the situation?
There are roughly two reasons for the turbidity of the filtrate filtered by the bag filter. The first is the damage of the filter cloth. The filter cloth is easily damaged when it encounters hard impurities. When the filter cloth is damaged, It will lead to a decrease in the filtering effect of the bag filter, resulting in turbidity of the filtrate. The second reason is that the number of filter holes in the filter cloth is too small, and the smaller the filter holes, the larger the filter holes, so the lower the filtration efficiency, the filtrate will appear turbid. Generally speaking, as long as the right filter bag is selected and the correct pressure is applied, the liquid will not appear turbid after filtration.

The third question, how often change the filter bag?
There are pressure gauges on the inlet and outlet pipes of the bag filter. Replace the filter bag according to the value displayed by the pressure gauge. Generally, the pressure difference that the filter bag can withstand is about 0.5~1kg/cm2. When the pressure difference reaches this range, The filter bag should be replaced in time to prevent the filter bag from rupturing, affecting the filtering effect and avoiding greater losses.
The above are a few problems that are prone to occur during the use of bag filters. I hope to help you. If you want to learn more about bag filters, you can call us at any time. We have professional technicians. Answer your doubts.
