the difference between PP pleated and PP melt

2021-06-18

What is the difference between PP pleated filter element and PP (melt blown) filter element?
The filter element is the purification equipment that the filter industry needs in order to purify the original ecological resources and reuse the resources. Many people think that PP pleated filter element and PP melt blown filter element are the same. This is wrong. What is the difference between PP pleated filter element and PP melt blown filter element?

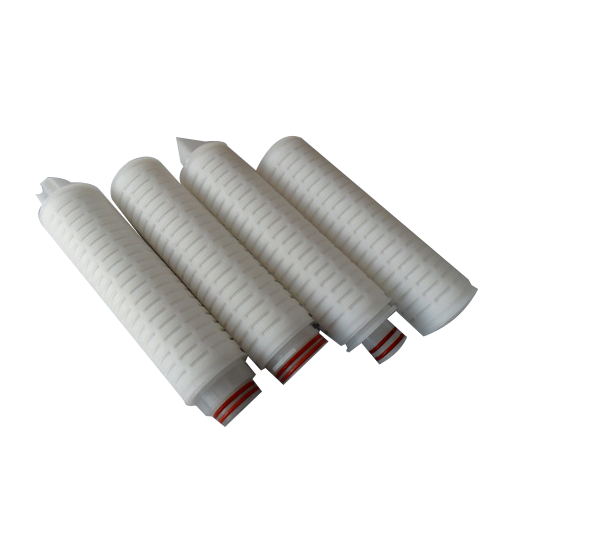

First of all, I will introduce the PP pleated filter element in detail. Take Lifeierte PP pleated filter element as an example. Lifeierte PP pleated filter element is made of polypropylene composite membrane as the filter material, and the polypropylene shell is heat sealed. There is no adhesive in the production, and the filter element does not fall off the medium. Can be used for liquid and gas filtration.
⒈ Filtration of various organic solvents and compressed air gas filtration in the pharmaceutical industry.
⒉ Pre-filtration of reverse osmosis water system in the electronics industry.
⒊ Various alcohol, mineral water and pure water filtration in food and beverage.
⒋ Organic solvents, inks, electroplating solutions, metal cutting fluids, photosensitive resists and other liquid filtration.
⒌ Clarification and filtration of sewage treatment.
Main performance and technical indicators: Take 10-inch filter element as an example
Filtration accuracy: 0.45μm (0.1μm, 0.22μm, 1μm, 3μm, 5μm, 10μm, 20μm, 60μm)
Effective filtration area: ≥0.65 square meters
Length: 2.5 inches ~ 40 inches
Normal working temperature: ≤55℃
Maximum working temperature: 80℃ (△P≤0.10Mpa)
PH value: 1-13
Main connectors: 220, 215, 222, 226
Integrity test (minimum bubbles) (25°C: 95% isopropanol)
0.10μm≥0.018Mpa
0.20μm≥0.014Mpa
0.45μm≥0.008Mpa


Secondly, talk about PP melt blown filter element

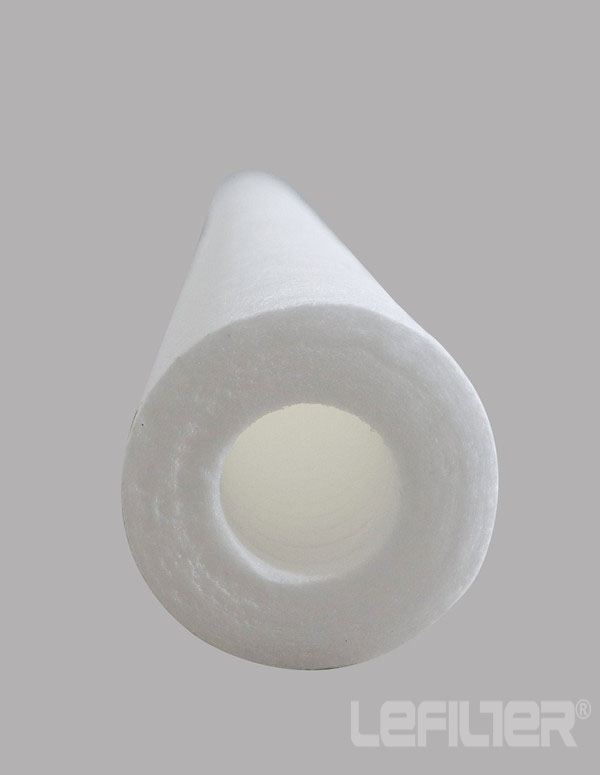

Lifeierte melt blown filter element is made of polypropylene superfine fiber sprayed. Deep filtration, made at one time. Good integrity.
Main features
Deep filtration, large flux, strong dirt holding capacity, full polypropylene structure, good chemical relevance, and low price.
The main purpose
1. The front-end filtration of pre-filtration or fine filtration of pure water system.
2. Coarse filtration of various beverages and wines in the food industry.
3. The front-end filtration of the pharmaceutical industry and electronic industry filtration.
4. Clarification and filtration of sewage treatment.
Main performance and technical indicators: Take 10-inch filter element as an example
Material pp polypropylene
Length 10 inch ~ 40 inch
Normal working temperature: ≤50℃
Maximum working temperature: 80℃ (△P≤0.10Mpa)
PH value: 1~13
