Brief introduction of bag filter housing

2021-06-16

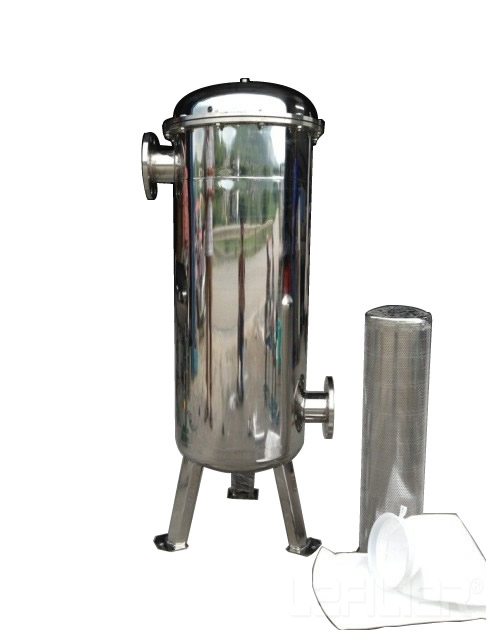

Brief introduction of bag filter:

The bag filter is made of high-quality stainless steel. The surface is mirror polished, matt or sandblasted. The bag filter is a new type of filtering system, a professional liquid filtering equipment, and the inside of the filter is supported by a metal mesh. Filter bag, the liquid flows in from the inlet, filtered by the filter bag, and flows out from the outlet. The impurities are intercepted in the filter bag, thereby effectively removing particles of different sizes, so as to achieve the purpose of liquid filtration, purification, separation and recovery, and replacement You can continue to use the filter bag or clean the filter bag. Novel structure, small size, simple and flexible operation, energy saving, high efficiency, airtight work, adaptable multi-purpose filter equipment.

Bag filter product structure and technical specifications:

Shell material: stainless steel 304, 316L

Shell diameter: φ167~1000mm

Shell height: 410~1500mm

Reference flow: 10T/h~300T/h

Working pressure: 1.0Mpa

Number of filter bags: 1~10

Opening method: clamp type, flange type (ordinary flange, movable flange)


Functions and features of bag filter products:

1. The probability of side leakage of the filter bag is small, which effectively guarantees the filtering quality.

2. The filter accuracy of the filter bag has been continuously improved, and it has reached 0.5μm at present.

3. The bag filter can bear greater working pressure, with small pressure loss, low operating cost, and obvious energy-saving effect.

4. The bag filter has large processing capacity, small volume and large dirt holding capacity.

5. Based on the working principle and structure of the bag filter system, it is convenient and quick to replace the filter bag, and the filter is free of cleaning, saving labor and time. The filter bag can be used repeatedly after cleaning, saving cost. The bag filter has a wide range of applications, flexible use, and various installation methods.
