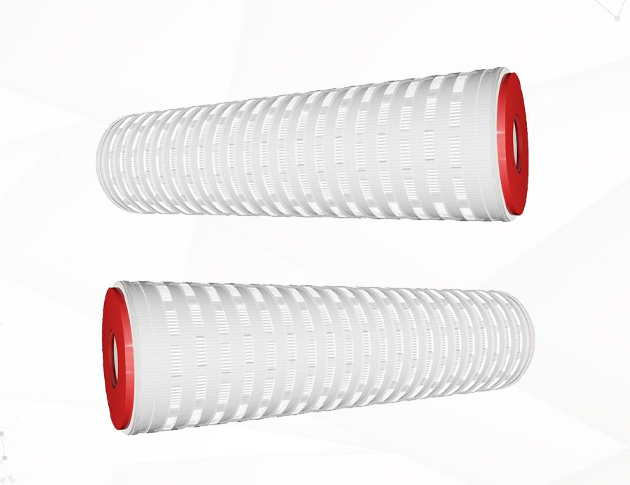

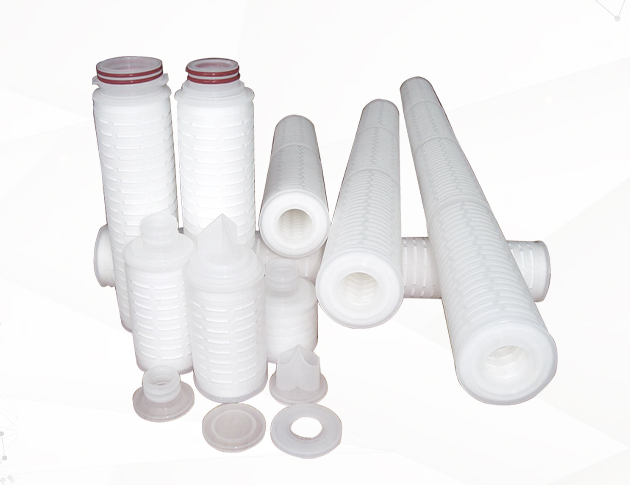

Micro Pleated Filter Cartridge

Employed a variety of high-quality filter material, Micro Pleated Filter Cartridge is made by folding the imported non-woven fabric or mesh, which serves as the supporting layer. The materials meet the requirement of FDA, and have a wide range of chemical compatibility. The filter housing, the centre rod, and the end cover all employs the thermal fusion welding technology.

Low Failure Rate
Stable Performance
Efficient
Environmental Protection

APPLICATION FIELDS

● Pharmaceutical industry: pre filtration of various antibiotic pharmaceutical.
● Food and beverage industry: filtration of wine, mineral water and drinking water.
● petroleum industry: pre filtration of oil field water.
● Electronic industry: pre filtration of high purity water.
● Chemical industry: filtration of all kinds of organic solvents, acid and alkali.

PRODUCTION FEATURE

● Outstanding chemical compatibility, suitable for filtering the strong acid, alkali and organic solvents.
● Membrane is the deep folding filtration, and the folding design increases the filtering area.
● Low PSID (Pounds per Square Inch Differential), strong pollutant-carrying capacity, long service life.
● A variety of filtering precisions are offered.
● The gradual aperture changes can provide high pollutant-carrying capacity.
● Materials meet the FDA's requirements.

TECHNICAL SPECIFICATIONS

Filter Size：
● Outer diameter: 69 mm.
●Length: 9.75 ", 10 ", "20", 30 ", 40".

Parts material:
●Filter material: polypropylene (PP), poly ether sulfone (PES), poly tetra fluoro ethylene (PTFE), Nylon 6 (N6), PVDF membrane.
●supporting/diversion layer: polypropylene.
●Shell/centre rod/end cover: polypropylene.
●Sealing ring material: silicon rubber, ethylene-propylene rubber, nitrile rubber, fluorine rubber, Teflon rubber.

Filter performance:
●filtering accuracy: 0.1μm, 0.22μm, 0.45μm, 1μm and 3μm,5μm, 10μm, 20μm, 50μm.
●The highest operating temperatures: 1 bar 80 ℃, when the temperature exceeds 50 ℃ the recommendation is to employ stainless steel as the supporting ring.
●Maximum PSID (Pounds per Square Inch Differential): 4.0 Bar at room temperature.
●The biggest backpressure difference: 2.0 Bar at room temperature.
●Sterilization temperature: 121 ℃, 30 minutes at a time.
