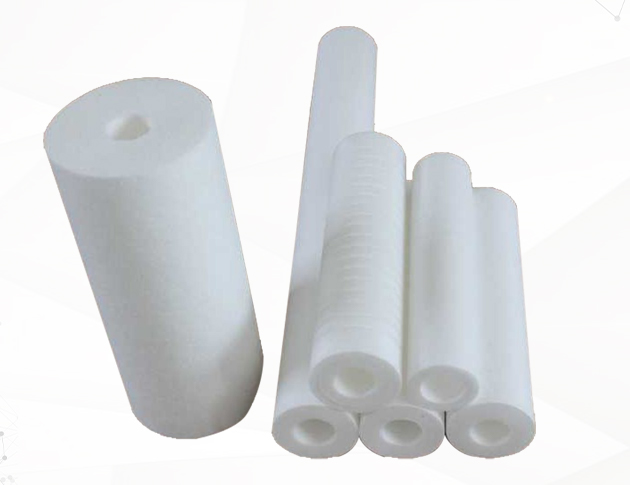

Melt Blown Filter Cartridge

PP Melt Blown Filter Cartridge is composed of polypropylene superfine fiber which melted and entangled at high temperatures. The fiber without any chemical adhesives forms three-dimensional micro porous structure which integrates the surface, the deep and the coarse filter together.

Low Failure Rate
Stable Performance
Efficient
Environmental Protection

APPLICATION FIELDS

● Melt Blown Filter Cartridge was used in drinking water filtration, RO antiosmosis filtration.
● Also used in the acid and alkali liquid filtration in industrial chemistry.
● The filtration of industrial water and plating solution.
● The filtration of imaging solution and ink.
● The pre-filtration of sterile water and ultra-pure water.
● The filtration of chemical materials and organic solvent.

PRODUCTION FEATURE

● The surface with deep hole groove structure can scatter the direction of flow and reduce the flow resistance.
● Progressive density structure can increase the carrying capacity of the pollutant .
● Reinforce the surface fiber structure and reduce the depilation possibility.
● Be made of PP superfine fiber which have high filtration precisio.
● 100% pure PP can ensure high corrosion resistance.
● shape in hot melt way without any chemical adhesive.

TECHNICAL SPECIFICATIONS

Filter Size：
● External diameter：63mm，110mm.
●Inner diameter：28mm，30mm.
●End cover：glass fiber reinforced polypropylene.
●Length：9.75" 、9.87" 、10" 、20" 、30" 、40" 、50" 、60"r.

Material:
●Filter material：polypropylene （PP）.
●End cover：polypropylene.
●Center pole: polypropylene.
●Spacer/ seal ring: silicon rubber, Ethylene Propylene Rubber (EPR), nitrile rubber buna (NBR), FPM.
