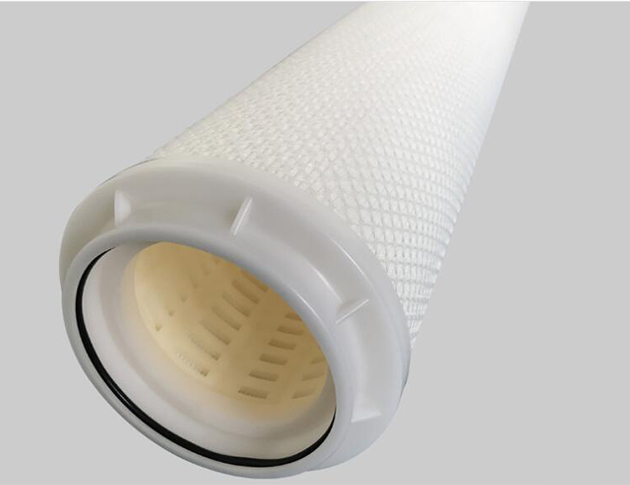

Parker Large Flow Filter

Replacement Parker filter provides a filtering scheme which Each park series filter can process flow of 1300 liter/minute, which significantly reduces the filter quantity and size. Positively charged type O sealing ring and a built-in handle make the filter installation fast, safe and convenient.

Low Failure Rate
Stable Performance
Efficient
Environmental Protection

APPLICATION FIELDS

● Pretreating of RO cartridge filtration, seawater desalination.
● Filtration of condensed water in power plants.
● Filtration of bulk drug, solvent, and water in bio-pharmacy industry.
● Filtration of bottled water, liquid glucose, edible oil, juice, softdrink and milk.
● Painting, petrochemical industry.
● Micro-electronics, film, fiber, resin.

PRODUCT PROPERTIES

● Great capacity of impurity and long life.
● Less replacement saves labor cost.
● Sealed interface reduces the danger of bypass flow and improve the efficiency of filtering.
● Easier installment and lower labor cost.
● They are applied in various fields with their extensive chemical applications.

TECHNICAL SPECIFICATIONS

The material:
● Filter material: glass fiber, polypropylene（PP）
●Support/Diversion layer: polypropylene（PP）
●The end cap: reinforced polypropylene with glass fiber
●Seal ring material: EPR (Ethylene-Propylene Rubber), silicon rubber, nitrile rubber, fluorine rubber

Part material:
●Filtering accuracy:1μm、4.5μm、6μm、10μm、20μm、40μm、70μm、100μm
●Highest operating temperature: 82℃ Maximum pressure drop: 3.4bar，82℃
●Recommended maximum filtering water flow: 1300LPM

COMMON MODELS

COMMON MODELS
RCP010-20SPP	RCP010-20VPP	RCP010-40EPP	RCP010-40VPP	RCP010-60SPP
RCP030-30EPP	RCP030-30VPP	RCP030-40EPP	RCP030-40SPP	RCP030-60NPP
RCP045-40EPP	RCP045-20NPP	RCP045-40VPP	RCP045-20VPP	RCP045-40SPP
RMG010-20VPP	RMG010-40EPP	RMG010-40SPP	RMG010-60SPP	RMG045-40SPP
RSCP010-20EPP	RSCP010-60SPP	RSCP030-60EPP	RSCP045-20SPP	RSCP045-40EPP
RSMG045-20EPP	RSMG045-60NPP	RSMG100-20NPP	RSMG100-20VPP	MFNP050-40N-ITT
For more models, please contact customer service
