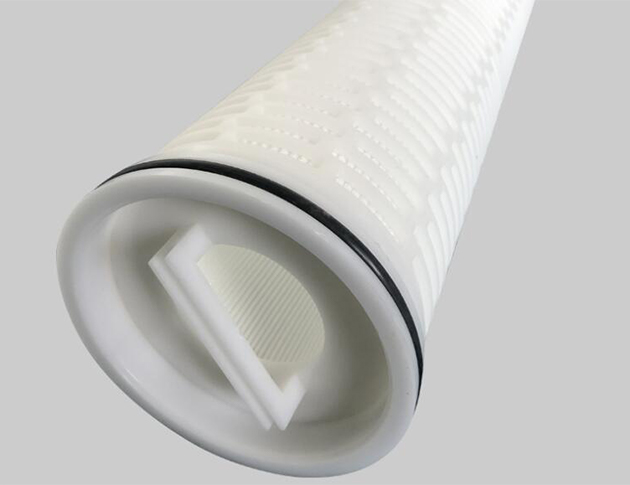

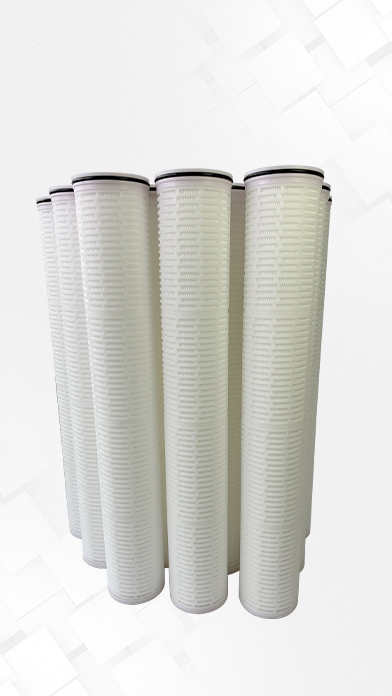

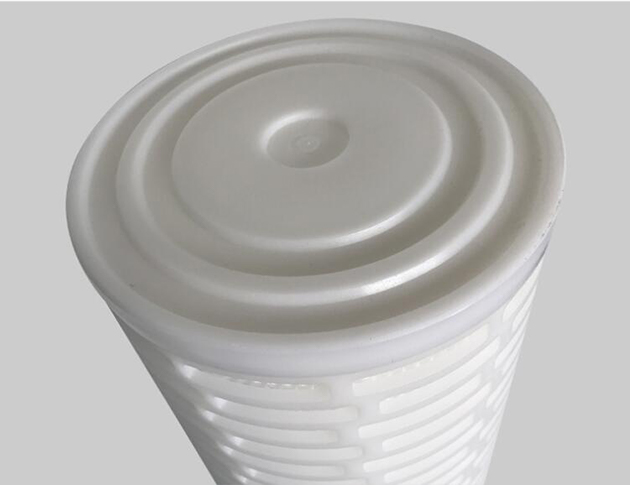

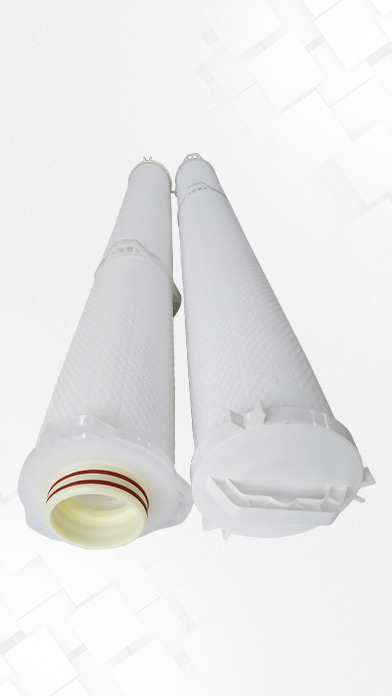

Lefilter Large Flow Filter

Lefilter large flow filters have a big diameter of 6 inches/152mm.The big diameter of filter elements increases effective filtering areas, and greatly reduces the amounts of filter element and the size of its body case.

Low Failure Rate
Stable Performance
Efficient
Environmental Protection

APPLICATION FIELDS

● RO cartridge filtration and seawater desalination pre-treatment.
● Filtration of condensed water in power plants.
● Filtration of bulk drug, solvent, and water in bio-pharmacy industry.
● Filtration of bottled water, liquid glucose, edible oil, juice, soft drink and milk.
● Painting, petrochemical industry.
● Micro-electronics, film, fiber, resin.

QUICK OPTIONS

● The structure of gradual aperture.
● Maximum flow of one filter can be up to 110m³/h during the water filtering.
● Filtration system size can be reduced by 50% in maximum.
● Filters with the length of 20", 40"and 60" can be offered.
● Inside-out directions guarantee all impurities will be left inside the filters.

TECHNICAL SPECIFICATIONS

Filter size:
● outer diameter: 6"（152mm）
●Length:20"（528mm）、40"（1022mm）、60"（1538mm）

Part material:
●Filter material: folding glass fiber, folding deep polypropylene（PP）, MBPP
●Support/Diversion layer: polypropylene （PP）
●End cap: reinforced polypropylene with glass fiber
● Seal material: EPR (Ethylene-Propylene Rubber), nitrile rubber

Performance of filter elements:
●Filtering accuracy:1μm、4.5μm、6μm、10μm、20μm、40μm、70μm、100μm
●Highest operating temperature: folding glass fiber:121℃ folding deep polypropylene（PP）:82℃ MBPP:65℃
●Maximum pressure drop: folding glass fiber:3.4bar，121℃ folding deep polypropylene（PP）:3.4bar，82℃ MBPP:1.03bar，65℃
● Recommended pressure drop for filter replacement: 2.4Bar ，20℃
●Recommended maximum filtering water flow: 20"filter: 660L/min 40"filter: 1300L/min 60"filter: 1900L/min

COMMON MODELS

COMMON MODELS
HFU660UY020J	HFU660UY045H	HFU660UY045H1	HFU660UY045H13	HFU660UY045H13W
HFU660UY045HW	HFU660UY045J	HFU660UY060H	HFU660UY1000H1	HFU660UY1000H4W
HFU660UY1000HW	HFU660UY100H13	HFU660UY100H4W	HFU660UY100HW	HFU660UY200H13
HFU660UY200H4W	HFU660UY400H13	HFU660UY700H13	HFU620CAS010JUW	HFU640UY045H13
HFU660GF050H13	HFU640UY045J	HFU660GF100H13	HFU640GF200H13	HFU620GF100H13
HFU640CAS010JUW	HFU660UY700H13W	HFU640UY200J	HFU640UY700J	HFU660UY400J
For more models, please contact customer service
