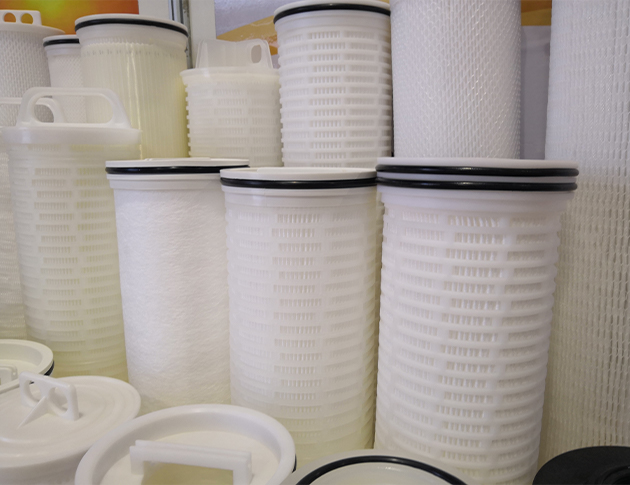

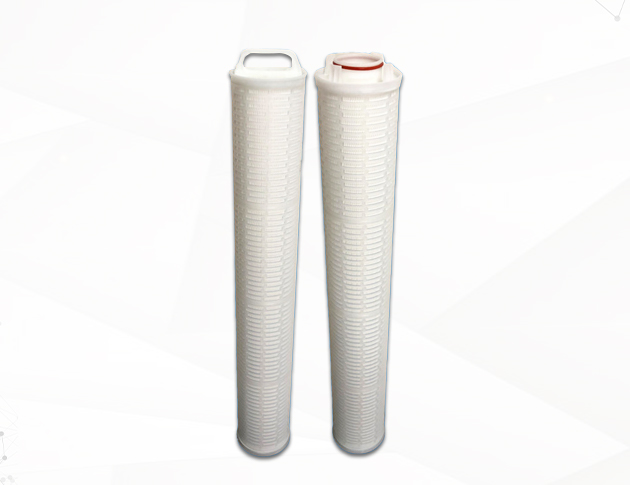

3M CUNO High Flow Filter Element

It’s designed for a variety of container which can hold 1 to 37 filter elements. It can meet a variety of flow rate demands and the hardware of which has a price competitive advantage. The large diameter of Filter design increases the filter area and can greatly reduce the amount of filter elements and the shell size.

Low Failure Rate
Stable Performance
Efficient
Environmental Protection

APPLICATION FIELDS

● RO cartridge filtration, desalination pretreatment.
● The filtration of Power plant condensate water.
● Raw material drug, solvents and water filtration in biopharmaceutical industry.
● Filtration for bottled water, liquid glucose, edible oil, juice, soft drink and milk.
● Paints, coatings, petrochemical.
● Microelectronics, films, fibers, resins.

PRODUCTION FEATURE

● High pollutant assimilative capacity can prolong the service life and reduce the cost.
● Reduce the amount of replacement filter elements and decrease labor costs.
● The design of seal interface can reduce the risk of bypass flows and increase the filtration efficiency.
● Easier installment and lower labor costs.
● Wide chemical applicability can be applied to a variety of fields.

TECHNICAL SPECIFICATIONS

Material：
● The material filter：glass fiber, polypropylene（PP）
●Support/Diversion layer : polypropylene
●End cover：glass fiber reinforced polypropylene
●Seal ring: EPR, PTFE fluororubber

Filter element performance:
●Filtering accuracy: 1μm、3μm、5μm、10μm、20μm、50μm、70μm
●The highest operating temperature: 80℃
●The maximum pressure-drop: folding glass fiber:3.4Bar，20℃
●Recommend pressure-drop of the replacement filter: 2.4Bar ，20℃
●The maximum water-carrying capacity: 1300L/min

COMMON MODELS

COMMON MODELS
HF40PP001A01	HF40PP015A01	HF60PP001A01	HF60PP015A01	HF40PP001B01
HF40PP015B01	HF60PP001B01	HF40PP001C01	HF60PP015B01	HF40PP015C01
HF60PP001C01	HF60PP015C01	HF40PP001D01	HF60PP001D01	HF60PP015D01
HF40PP025A01	HF60PP002A01	HF60PP025A01	HF40PP002B01	HF40PP025B01
HF60PP002C01	HF60PP025C01	HF40PP002D01	HF60PP002D01	HF60PP040A01
HF60PP005B01	HF60PP040B01	HF60PP005D01	HF60PP010B01	HF60PP010D01
For more models, please contact customer service
