Bag Filter Housing

Bag Filter Housing is a kind of multipurpose filtration equipment that is of novel- structure, small volume, convenient operation, energy saving, high efficiency and strong adaptability and it works in a closed environment.It is very convenient to replace the filter bag with only a little bit material consumption.

Low Failure Rate
Stable Performance
Efficient
Environmental Protection

FEATURE

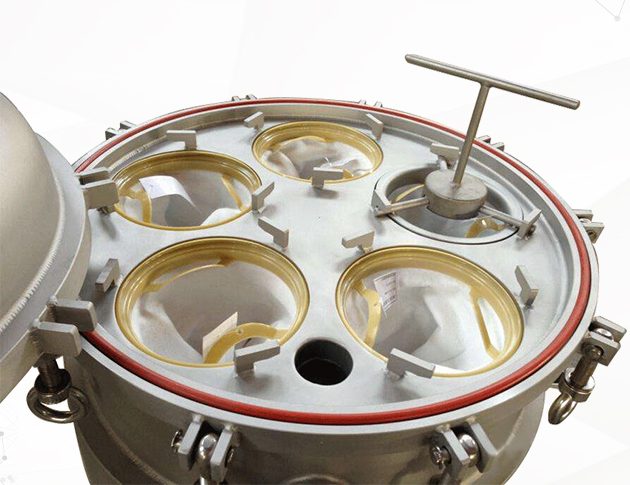

Bag filter is a new filtering system and a kind of professional liquid filtering equipment. The filtering bag is supported by metal basket in the filter. The liquid firstly flows into the bag from the entrance and outflows from the exit after filtered by the bag. Impurities are intercepted into the bag, which will effectively remove particles of different sizes, so as to achieve the goal of liquid filtration, purification, separation and recovery. Thus it can reuse after replacing or cleaning the bag.

QUICK OPTIONS

Model	In/ Out	Specification	Thicknessmm	Connection	Number of bag	Bag type	Flow t/h	Filter area M²
LFD-1-P	DN40	φ219×900	2	Clamp Movable flange	1	1#	15	0.23
LFD-2-1P	DN50	φ219×1310	2	Clamp Movable flange	1	2#	30	0.5
LFD-2-2P	DN80	φ400×1450	3	flange	2	2#	60	1
LFD-2-3P	DN100	φ450×1500	3	flange	3	2#	90	1.5
LFD-2-3P	DN100	φ550×1550	3	Flange + boom	4	2#	120	2
LFD-2-5P	DN125	φ600×1600	3	Flange + boom	5	2#	150	2.5
LFD-2-6P	DN150	φ650×1600	3	Flange + boom	6	2#	180	3
LFD-2-7P	DN200	φ700×1650	3	Flange + boom	7	2#	210	3.5
LFD-2-8P	DN200	φ750×1700	4	Flange + boom	8	2#	240	4
LFD-2-9P	DN200	φ800×1750	4	Flange + boom	9	2#	270	4.5
LFD-2-10P	DN250	φ850×1750	4	Flange + boom	10	2#	300	5
LFD-2-11P	DN250	φ900×1750	5	Flange + boom	11	2#	330	6
LFD-2-13P	DN250	φ950×1750	5	Flange + boom	13	2#	390	6
LFD-2-15P	DN300	φ1000×1750	5	Flange + boom	15	2#	450	7.5

TECHNICAL SPECIFICATIONS

1. Housing material: stainless steel 304，316L.
2. Reference flow rate : 10T/h ~ 300T/h.
3. Working pressure: ≤0.6Mpa.
4. Quantity of the bags: 1 ~ 15 branch.
5. Connection: clamp type, flange type (common flange, a movable flange).

FUNCTION-CHARACTERISTI

1. Slight probability of side leakage of filter bag which effectively guarantee the filtering quality.
2. Bag filter can bear greater working pressure with less pressure loss, lower operation cost and obvious energy- saving effect.
3. Filtering accuracy of filter bag is increasing continuously, which has reached 0.5 u m at present.
4. Bag filtering is featured with large-processing capacity, small volume and large amount of contaminant.
5. Based on the working principle and structure of bag filter, it is convenient and rapid to replace the filter bag. The filter is no-clean as well as labor saving and time saving. Filter bag can be reused after cleaning which can save cost. It is widely used and flexible, and can be installed in various ways.

Application Of Bag Filter Housing:
1. Paint, beer, vegetable oil, medicine, chemicals, petroleum products, textile chemicals, photographic chemicals, electroplating liquid, milk, mineral water, hot solvent, latex, industrial water, syrup, resin, printing ink, industrial waste water, fruit juice, edible oil, wax etc.
